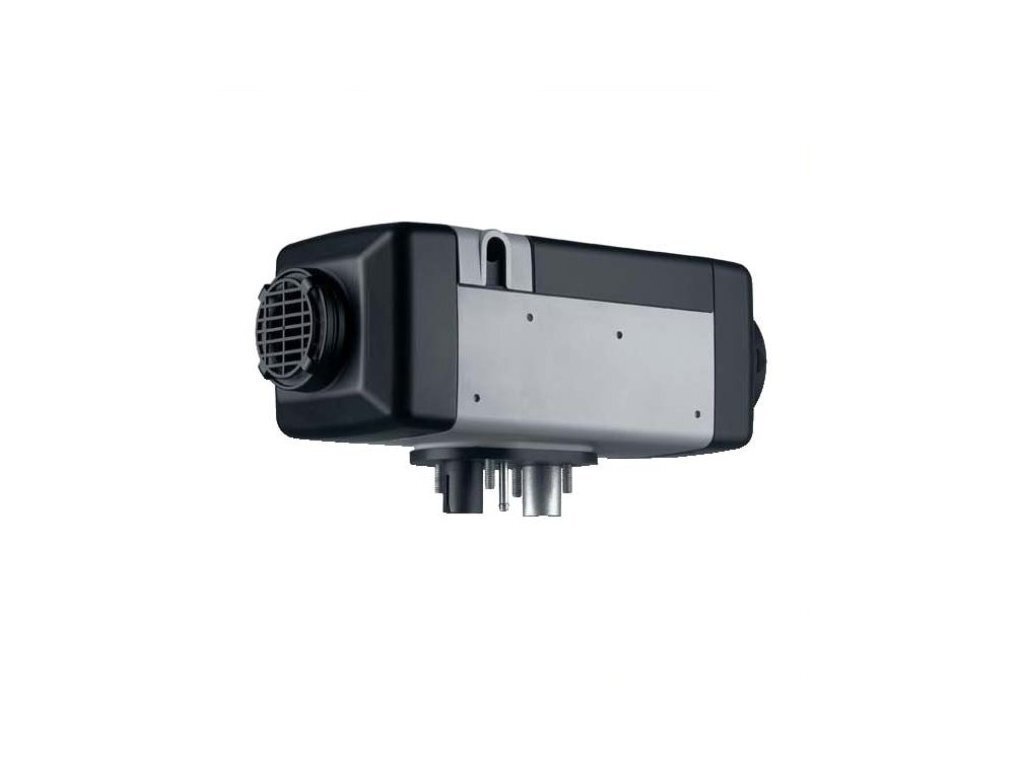

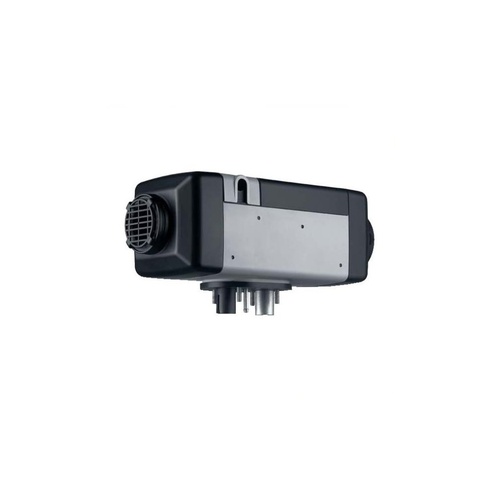

Webasto air heaters provide continuous heating power output via stepless modulation. The heater operates quietly while consuming minimal electrical power and fuel. Easily mounted in your Caravan, Motorhome or Campervan.

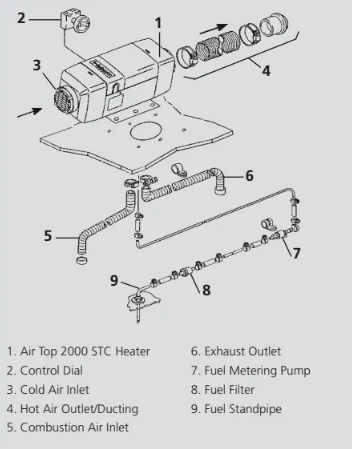

In Caravans, the heater can be mounted under the bed or in a cupboard connected directly to its own diesel 12L fuel tank (optional extra). In Motorhome installations, the fuel can be taken directly from the main diesel tank on board. On average the AirTop heater will use between 0.12-0.24L per hour of diesel.

The integrated altitude sensor constantly ensures an optimal combustion process in altitudes up to 2,200m under lower air pressure and with a lower oxygen ratio. The Air Top Evo models feature an in-built air pressure sensor as standard whereas the Air Top 2000 STC model is offered with an optional altitude switch.

(KTH-1OUTW12V-PGM)

2 Year Warranty

  • Heat output: 3,100 – 7,000 BTU/h (0.9 – 2.0 kW)
  • Uses as little as 3.8L  of fuel in a 22 hour period
  • CARB approved
  • Full diagnostic capability with PC interface availability
  • Diesel
  • 12V / 24V
Specifications

Air Top 2000 STC

Heating power (kW)

0,9 - 2,0

Fuel

Diesel

Fuel consumption (l/h)

0.13 - 0.27

Rated voltage (V)

12/24

Operating voltage range (V)

10 - 15

Rated power consumption (W)

14 - 29

Dimensions L x W x H (mm)

311 x 120 x 121

Weight (kg)

2.6

Air flow (m3/h)

93
