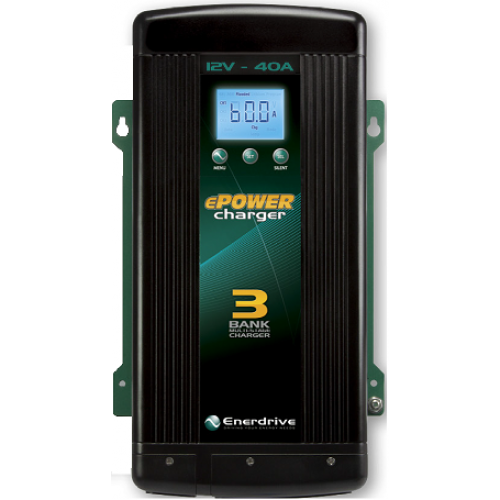

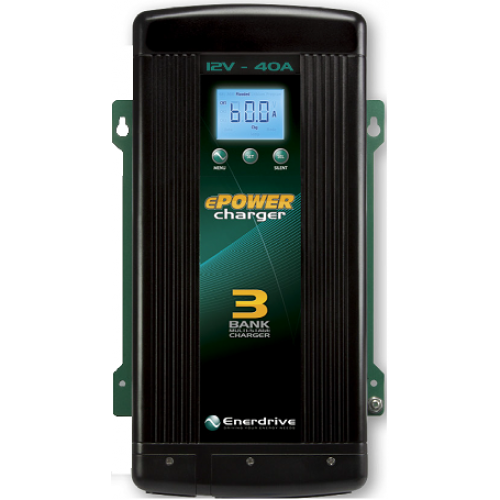

ePower 40amp 12v Smart Battery Charger - Three Output

Model   EN31240

CHARGER OUTPUT:
Output Current (Maximum)   40A
OUTPUT VOLTAGE RANGE:
- Charge 14.2 - 15.5 V
- Float 13.4 - 13.8 V
- Equalize 16.0 V
Charging Control Four stages (Bulk/Absorption/Float/Maintenance)
  Two stages (Bulk/Absorption)
  Constant Power Supply (Program setting)
  Priority Battery Bank Charging
DC Output Bank Three (1 fully independent, 2 common with diode isolation)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Standby Current < 2 mA
CHARGER INPUT:
AC Input Voltage (Nominal) 90 to 265 VAC
AC Input Operating Range   207-265 Vac (3.8 A Max) 90 - 125 Vac (7.7 A Max)
AC Input Frequency Range 47 - 63 Hz
Power Consumption   700W (Full Load)
Power Factor Correction Yes
Charger Efficiency > 82%
PROTECTION AND FEATURES:
Reverse Polarity Yes, (with user replaceable fuse/s)
Over Charge Yes, unit shutdown
Over Temperature Yes, unit de-rated and shutdown
Output Short Circuit Yes, (with user replaceable fuse/s)
Cooling Forced air ventilation (thermo controlled fan)
Temperature Setting Hot, Normal, Cold (no sensor connected)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied)
DISPLAY:
LCD Display (with back light) Charging status, Battery Voltage, Output Current & Fault Codes.
AC INPUT AND DC OUTPUT CONNECTION:
AC Input Connection IEC with Supplied 1.2M Power Lead
DC Output Connection Heavy Duty Terminal (3 banks) - Pan Heads 6mm Thread
DC Output Ground Single Heavy Duty Common Ground Stud
ENVIRONMENTAL AND OPERATING TEMPERATURE:
Storage Range -40 degree to 70 degree C
Operating Range -20 degree to 60 degree C
Humidity 5-95%, relative humidity non-condensing
Ingress Protection IP32 (Basic drip proof in vertical orientation)
Base Unit Weight and Dimensions:
Weight: (kg)   2.6
Dimension: (mm) L x W x H   295 x 206 x 86
Optional Accessories: Remote Digital Display / Enerdrive Part Number EN3REM
Regulatory Compliance: Complies with AS/NZS 60335.2.29 Including Australian deviations.

Note: Specifications subject to change without notice.
