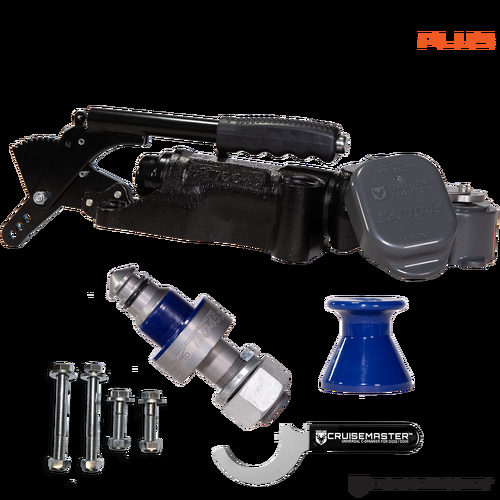

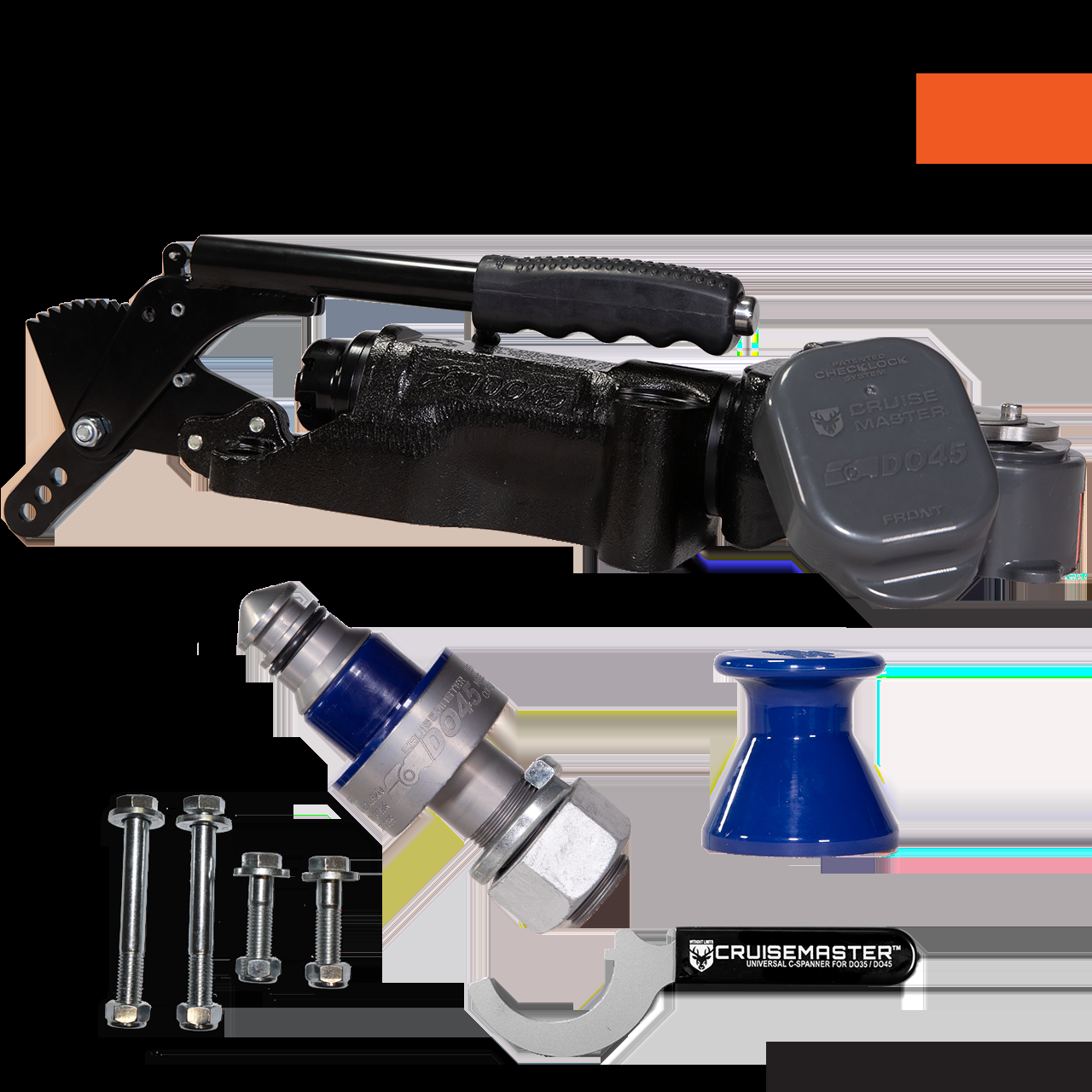

Cruisemaster DO45 Plus Coupling Incl Handbrake

ITEM INCLUDES
  • DO45 Plus (With Handbrake)
  • Tow Pin 1 1/4" Shaft
  • Tow Pin Cover
  • Universal C-Spanner
  • Fitment Bolts
  • User Guide
PLUS SERIES EXCLUSIVE FEATURES
    • Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
    • Improved Bumper now includes reflective reversing strip for easy alignment
    • Rear support webbing allows for mounting upside down on the underside of the drawbar

DO45 Version 1 & DO45Plus accessories and fittings are not interchangable

(18D-DO45PLUS-I)

STANDARD V3 FEATURES
        • 2 Stage ADR compliant locking mechanism (D-Value and V-Vlaue ADR Compliant)
        • Low profile Bumper & Cap for impressive clearance
        • High articulation for improved handling off-road and on unmaintained roads
        • Suitable for use with most Weight Distribution System’s
        • Forged Yoke and Rear Nut for added strength
        • One piece light weight Cast Housing
        • Improved towing safety
        • Combination of zn-ni and e-coat for superior corrosion protection
        • Greaseable Bushes for easy maintenance and noise free towing
        • No tow ball height restrictions
        • R.A.T Run Tested and Proven
ARTICULATION: 360 degrees axial, minimum 70 degrees other axes.
LOCKING: Fully ADR 62/02 compliant including automatic secondary lock
BOLT PATTERN: 4 bolts at 185mm x 76mm (Front) x 54mm (Rear)
RATING: 4.5 Tonne
ACTION: Drop-On
MAINTENANCE: Fully Greasable
SKU 18D-DO45PLUS-I
Brand Cruisemaster
Shipping Weight 14.0000kg
Shipping Width 0.170m
Shipping Height 0.170m
Shipping Length 0.500m
Shipping Cubic 0.014450000m3
Unit Of Measure ea
